1.0mm 100m/lot Traffic Inductive Loop Vehicle Detector wire +black single loop detector for door/gate opener | personal protection business protection home protection cctv & surveillanc
Trade prices and below for EVERYONE!!

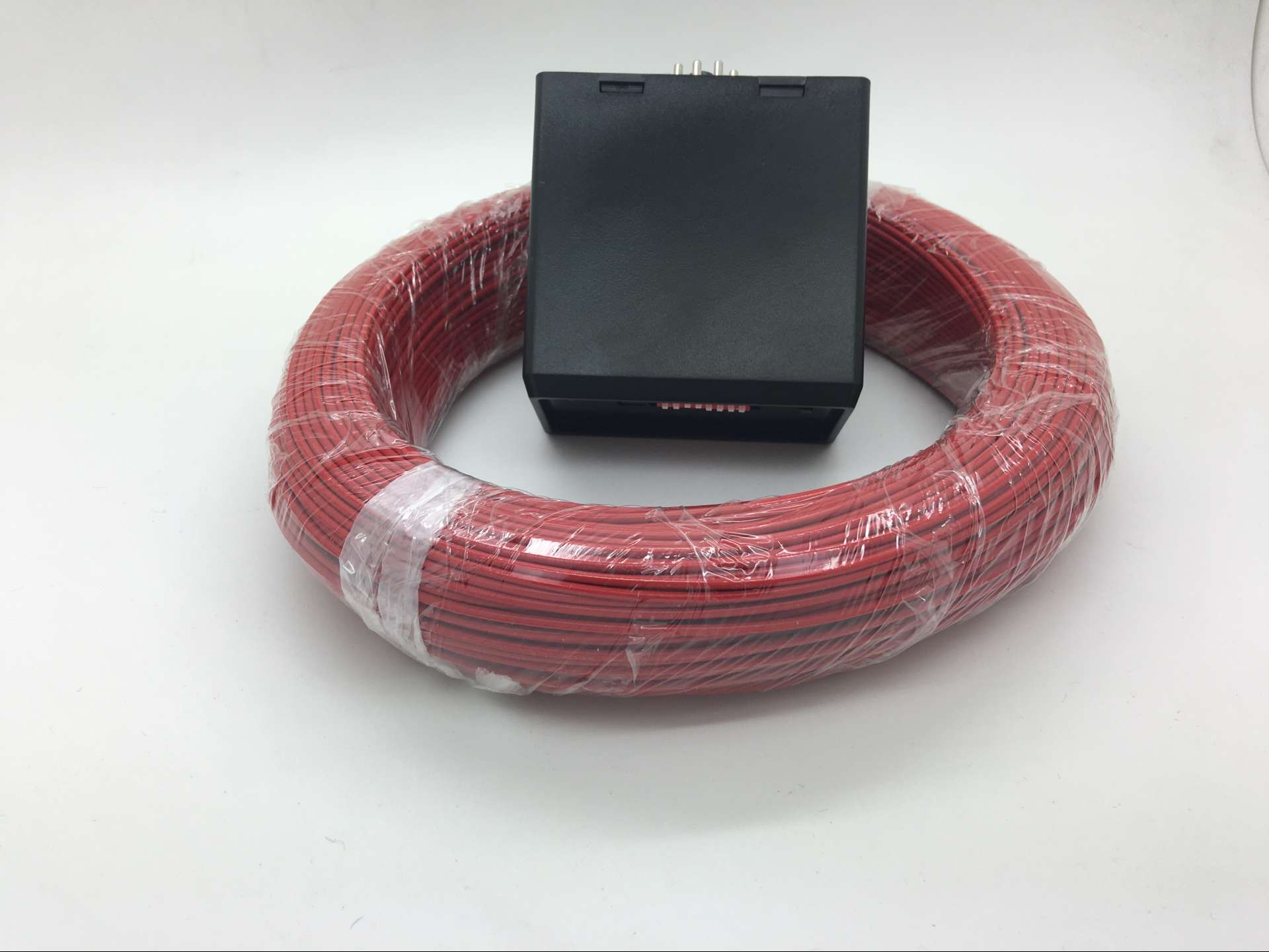

1.0mm 100m/lot Traffic Inductive Loop Vehicle Detector wire +black single loop detector for door/gate opener

80 % of buyers enjoyed this product!
In stock
TODAY'S DEAL Ends in: 04:36:18
Price: £ 36.04 Sale Price: £ 33.88
45 days Money back
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery
On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

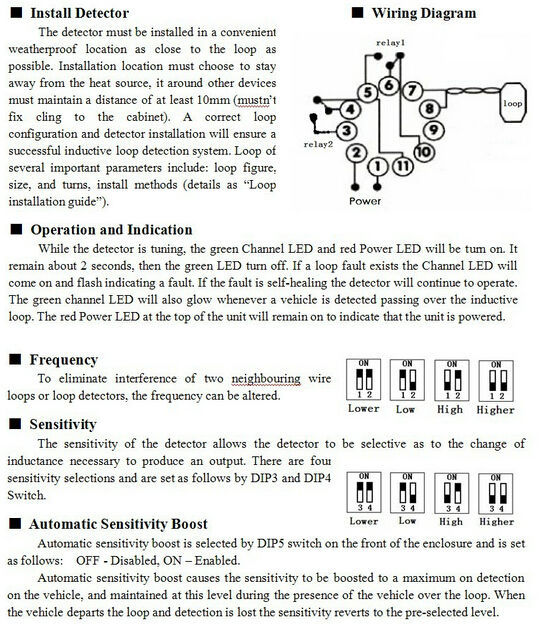

Vehicle Loop Detector: The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source; it around other devices must maintain a distance of at least 10mm (must not installation close with boxes wall). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, turns, install methods. Operation and Indication: While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate. The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered. Note: when place a order,please leave a massage for your need voltage(12v, 24v, 110v, 230v),thank you! PARAMETERS: Supply voltage: 230VAC , 115V AC, 24V DC/AC, 12V DC/AC ( Seethe label on the detector) Voltage tolerance AC: +10% / -15% Voltage tolerance DC: ±15% Power Consumption: 4.5VA Output relays: 240V/5A Operating temperature: -20°C to +65°C Storage temperature: -40°C to +85°C Frequency range: 20 kHz to 170 kHz Reaction time: 10ms Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes Sensitivity: Adjustable in 4 increments Loop inductance: Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter Size of Housing: 78x40x108 mm (L x W x H) Wire Technical Data Cross sectional area: 1.0mm2 Conductor structure line number / wire diameter: 19*0.23mm Insulation thickness: 0.35mm The average diameter: 2.0mm 20 degree conductor DC resistance: 19 Ω/km Voltage: 600V Working temperature: -80 to +250 degree Conductor: twisted nickel plated copper wire Insulation: PFA Teflon Color: Red Packing list: 1,single loop detector 2,1.0mm*100m coil
